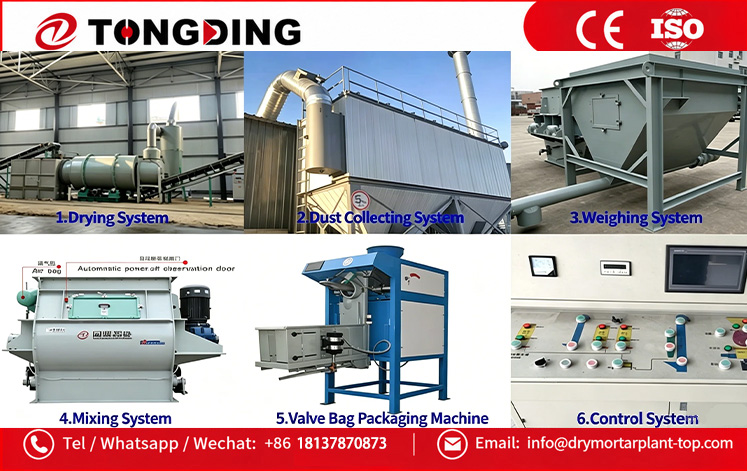

1.Raw material silos : Storage of materials like cement,sand etc.
2.Conveying Equipments : Screw conveyors or other material conveying systems.
3.Weighing system: It helps in getting exact proportion of mix.
4.Main mixing unit : Principal Equipment used. Twin shaft mixer is widely used.
5.Water supply system : Controls water fed.
6.Control system : Heart of automation

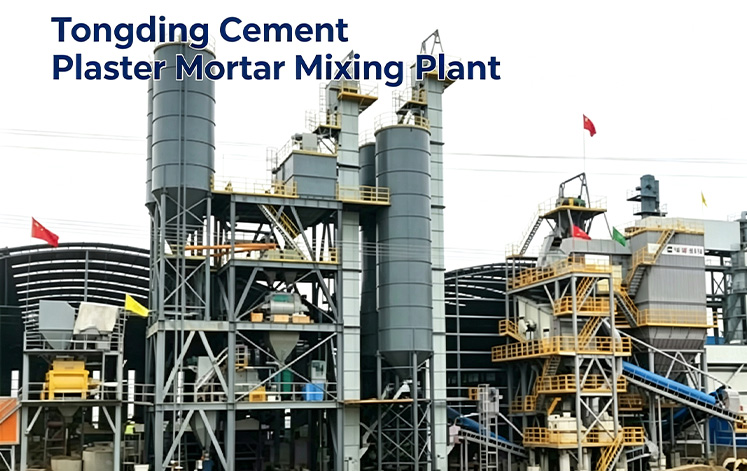

The Tongding cement-based plastering mortar mixing and production line features a twin-shaft zero-gravity mixer as its core unit; the machine boasts a well-engineered design characterized by wear resistance, durability, and a long service life. Its precise and reliable metering system ensures consistent product quality. The production line is equipped with a customized dust removal system to effectively control dust emissions. Furthermore, the equipment utilizes high-quality electrical components for stable, efficient operation and offers various discharge options—such as bulk and bagged delivery—to meet diverse requirements.
Plastering mortar mixing and production lines are not limited to producing plastering mortar alone; thanks to their core technologies—precision metering and efficient mixing—they can flexibly switch formulas to produce a wide range of other mortar products.
Key application areas include:
1.Masonry mortar: Used for brick and stone masonry; a fundamental necessity in construction.
2.Flooring mortar: Used for floor leveling or as a wear-resistant flooring material.
3.Specialty mortars: Such as tile adhesives, thermal insulation mortar, repair mortar, and waterproofing mortar.
When selecting mixing equipment for cement plastering mortar, consider the scale of construction, material characteristics, and budget:
Match the scale: Choose a portable vertical mixer for small-scale renovation projects; opt for a 200L–300L horizontal model for medium-sized projects; and select a high-capacity continuous production line for large construction sites.
Focus on core components: Prioritize equipment featuring a horizontal twin-shaft or ribbon-style mixing unit, as these offer superior mixing uniformity and efficiency. Ensure the motor and mixing blades are made of wear-resistant, durable materials, and give preference to systems equipped with automatic metering and dust-prevention features to guarantee consistent mortar quality and ease of operation.
| MODEL | WSZ2 | WSZ3 | WSZ4 | WSZ6 | WSZ10 | Remark |
| CAPACITY(T/H) | 10-20 | 20-40 | 40-60 | 60-80 | 80-120 | |
| HOST MOTOR(kw) | 18.5 | 22 | 30 | 45 | 55 | |
| AGGREGATE SIZE(mm) | 0〜4.75 | 0〜4.75 | 0〜4.75 | 0〜4.75 | 0〜4.75 | |
| AGGREGATE SCALE(kg) | （200〜1000）±1％ | （200〜 1500）±1％ | （200〜2000）±1％ | （400〜3000）±1％ | （400〜4000）±1％ | customizable |
| CEMENT SCALE(kg） | (100-600)±1% | （100-700）±1% | （100-800）±1% | （200-1300）±1% | （200-1800）±1% | customizable |
| ADDITIVE SCALE(kg) | （5〜30）±0.5％ | （10〜40）±1％ | （10〜50）±0.5％ | （10〜200）±0.5％ | （10〜200）±0.5％ | customizable |
A full dry-mix mortar plant combines storage silos, batching system, ribbon mixer, automatic packaging and dust collector. Tongding offers customizable dry mortar production lines with stable performance, supporting different output demands for cement plaster mortar manufacturing.Please Feel free to contact us.
