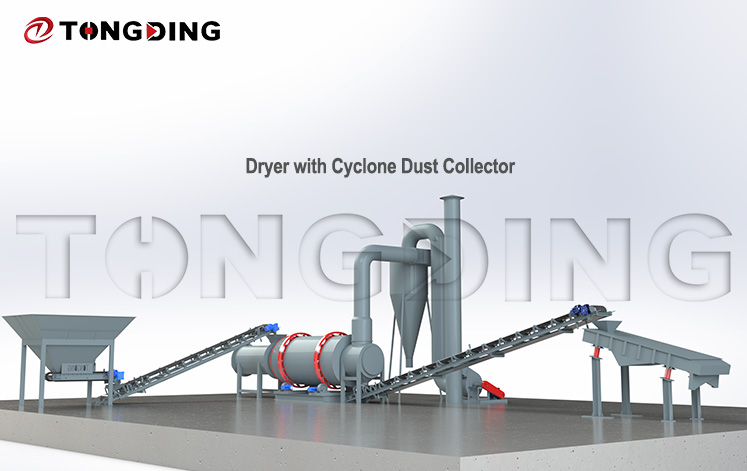

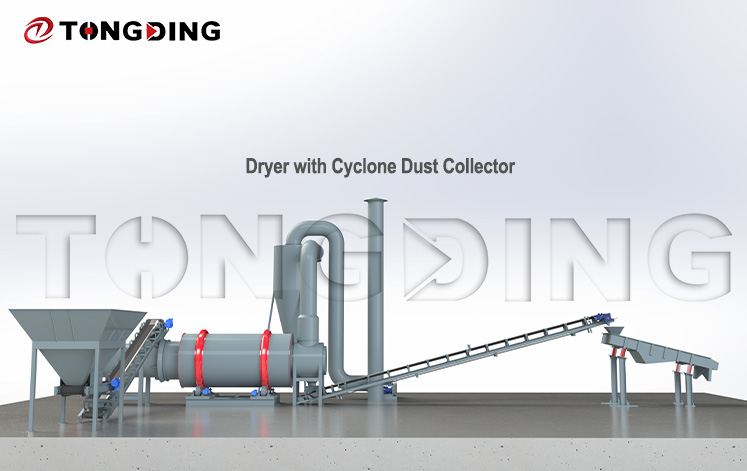

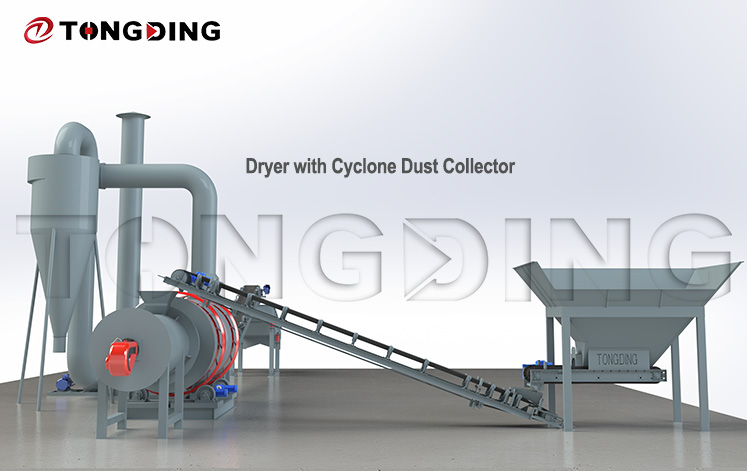

Sand Dryer with Cyclone Dust Collection

This industrial dryer is specially designed for river sand drying treatment. It adopts

a targeted drying structure for river sand materials, realizing continuous and

efficient moisture removal. Equipped with a professional cyclone dust collector,

 the equipment effectively collects dust and fine sand generated during production.

The whole machine runs stably, meeting the large-scale drying demand of building

materials raw materials while complying with environmental protection emission standards.

Advantages

  1. Professional for river sand, with strong drying capacity and uniform moisture removal.

  2. Matched cyclone dust removal system to reduce dust pollution and material loss.

  3. Stable operation, low energy consumption and high production efficiency.

  4. Compact structure, easy installation and daily maintenance.

  5. Environmental protection design, suitable for building materials processing production.

Applicable Materials

Our industrial rotary dryers are versatile, high-efficiency solutions tailored to process a wide range of granular and powdery materials, including but not limited to:


.Construction sands: river sand, sea sand, yellow sand, quartz sand, foundry sand, plate sand, steel sand, fracturing sand

.Mineral & mining materials: tailings sand, copper ore sand, iron ore sand, colored sand, fluorite powder, potash feldspar powder, sodium feldspar powder

.And other building materials sands and industrial bulk materials.

.Designed for stable operation and energy efficiency, our dryers guarantee uniform drying, low final moisture content, and reliable, consistent product quality for your production line.



Facturing-sand

Facturing Sand

Glass-sand

Glass Sand

Iron-powder

Iron Powder

Quartz-sand

Quartz Sand

Titanium-powder

Titanium Powder

Machine-made-sand

Machine-made Sand

Slag

Slag

Stone-powder

Stone Powder

River-sand

River Sand

Parameter

Model HG2240 HG2958 HG3270 HG3890 HG4512
Overall dimensions (m) 2.2x4 2.9x5.8 3.2x7 3.8x9 4.5x12
Simple volume (m³) 9.1 23.8 35.4 65.3 125.6
Simplified form: Rotational speed (r/min) 8-10 6-8 6-8 4-6 4-6
Power (kW) 7.5 22 44 60 75

The main structure of the equipment

1-Wet-Materials-Hopper

1.Wet Materials Hopper

Store wet materials.
Special design of silo, enable no remaining material at four corners. Equip with belt feeder.

2-Wet-Material-Belt-Conveyor

2.Wet Material Belt Conveyor

Convey materials.
High temperature resistance. Moisture proofing. Rubbing resistance.

3-Combustion-Burner

3.Combustion Burner

Programmable logic controller, Ignition transformer, Servo motor, Wind pressure switch, ow pressure switch and magnetic valve.

4-Combustion-Chamber

4.Combustion Chamber

Provide heat to dryer. Internal by refractory brick laying.

5.Triple Cylinder Rotary Dryer

Dry wet materials comprehensively.
High wear resistance. Widen running belt to increase the stability abd extent service life. Running belt excursion by applying our patented technology. Water tank under the frame, reducing the heat and resist skid.

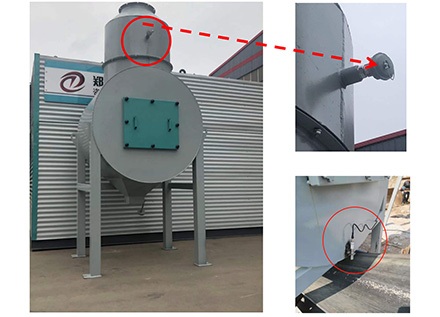

6.Discharge Bin

Reduce the air loss of the induced air system and increase the drying output. Precisely monitor and control the materials temperature and effectively take advantage of heat.

6–Dust-Collector

7.Dust Collector

Collect dust more effectively.
Separation of impurities, such as the soil in the finished sand.

7-Dry-Material-Belt-Conveyor

8.Dry Material Belt Conveyor

Convey materials.
High temperature resistance. Moisture proofing. Rubbing resistance.

8-Vibrating-Screen

9.Vibrating Screen

Screen material to different sizes.
Install special motor(export-oriented motor) from Xinxiang motor factory. Effectively screen out qualified materials.
