Single Shaft Ploughshare Mixer：Working Principle, Capacity & Applications for Dry Powder

Tongding single shaft ploughshare mixer is batch dry powder blending equipment. Learn its definition, working principle, structure, capacity and applications for dry mortar, putty powder, detergent powder production.

一.What is a Single Shaft Ploughshare Mixer?

A single shaft ploughshare mixer is a batch-type dry powder mixing machine widely used in powder processing industries. Driven by a single main shaft, the plough-shaped blades lift and toss powder materials inside the mixing chamber. It is designed for mixing powder-powder and powder-small liquid additives. This mixer is a cost-effective option for small and medium factories to produce dry mixed mortar, putty powder and detergent powder.

二.Single Shaft Ploughshare Mixer Working Principle?

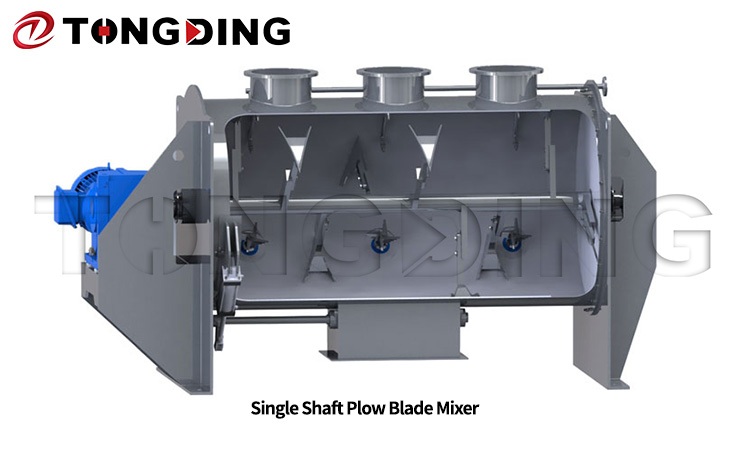

When the mixer operates, the central shaft drives multiple plough blades to rotate. The ploughs push materials upward and outward, creating a turbulent fluid mixing zone. High-speed side choppers break up material agglomerates to improve mixing uniformity. Liquid nozzles can be fitted to spray additives during blending. It completes one full mixing cycle within 2–4 minutes for homogeneous powder mixtures.

三.How many parts composition of single shalf plow blade mixer?

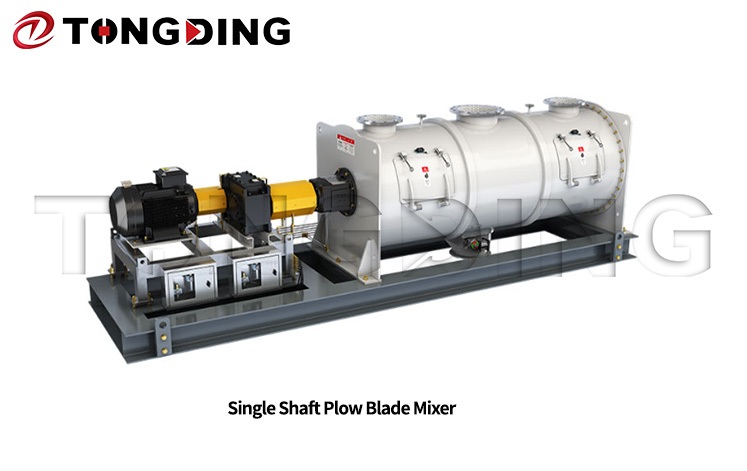

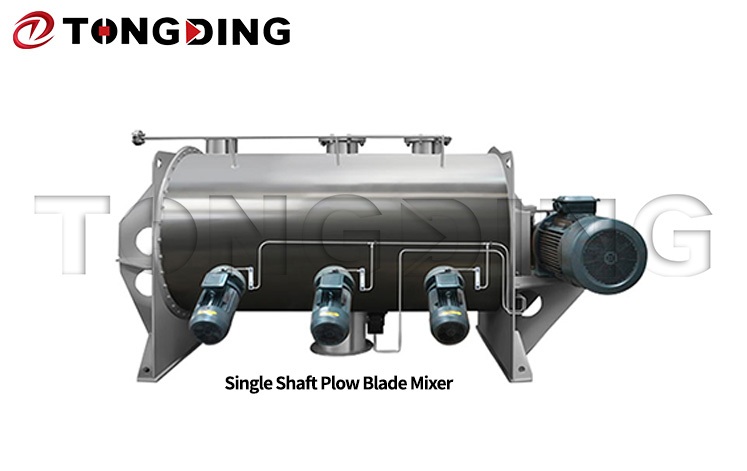

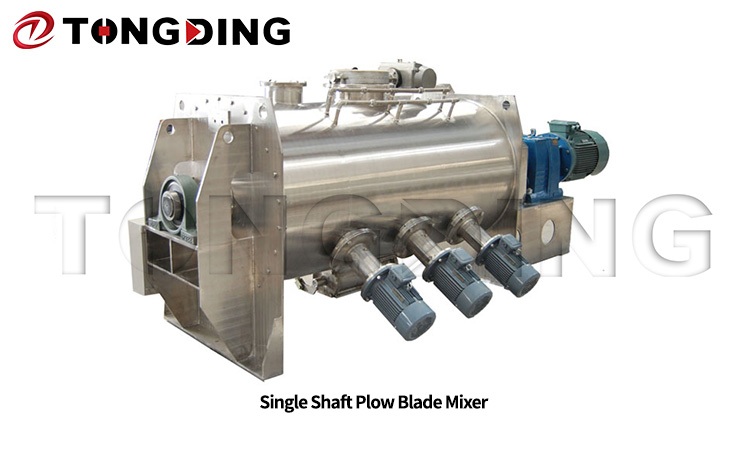

The mixer mainly consists of a horizontal mixing drum, main drive shaft, ploughshare blades, side high-speed choppers, driving motor and gearbox, feeding inlet, discharge valve, liquid spraying port and control cabinet. Each component works together to ensure stable rotation, material blending and easy discharging. Customers can choose carbon steel or stainless steel material for parts contacting raw materials.

四：The Capacity and Applications  of the Ploughshare Mixer?

Capacity

Standard batch volume ranges from 300kg to 2000kg, supporting continuous output of 1–12t/h. It matches small and medium dry powder production lines.

Applications

It mixes dry mixed mortar, wall putty powder, masonry mortar, detergent powder, chemical powder additives and other powder materials. It is suitable for simple powder formulas. Note that it is designed for dry powder mixing, not for large amounts of wet mortar.



五.Technical Specifications Table

l	Total volume(M³)	Load factor	Motor Power(KW)	Dimensions (mm)	Weight(kg)
				Maximum diameter × Height
LDH-0.1	0.1	0.4-0.6	3	1270×865×850	430
LDH-0.3	0.3	0.4-0.6	4	2070×1050×1150	950
LDH-0.5	0.5	0.4-0.6	5.5	2180×1200×1300	1100
LDH-1	1	0.4-0.6	11	2830×1620×1550	1800
LDH-2	2	0.4-0.6	18.5	3420×1810×1758	2520
LDH-3	3	0.4-0.6	18.5	3420×2045×1983	3200
LDH-4	4	0.4-0.6	22	4200×2140×2123	4836
LDH-6	6	0.4-0.6	30	4680×2290×2448	8775
LDH-8	8	0.4-0.6	45	5560×2390×2608	9360
LDH-10	10	0.4-0.6	55	5140×2390×2850	9750
LDH-12	12	0.4-0.6	55	5720×3110×2960	10660
LDH-15	15	0.4-0.6	75	5920×3280×3140	11050

六. About Tongding Machinery Single Shaft Ploughshare Batch Mixer

Tongding Machinery supplies durable single shaft ploughshare batch mixers for global clients. We offer customized material selection, liquid spraying systems and control solutions according to production demands. Our equipment features easy maintenance, low running cost and stable performance. We provide installation guidance, operator training and after-sales support for overseas powder production projects.If you are looking for a mixer, please feel free to contact us; we will provide you with the best products and prices.
